Differences between 1N4007 vs 1N4148 2023

In 2023, as electronic technologies continue to advance, understanding the key differences between diodes such as the 1N4007 and 1N4148 remains crucial for engineers and hobbyists alike. These two diodes, with their distinct characteristics and applications, offer unique advantages in a rapidly evolving landscape of electronic components. This discussion delves into the disparities between the 1N4007 and 1N4148 diodes, shedding light on their roles and significance in contemporary electronics.

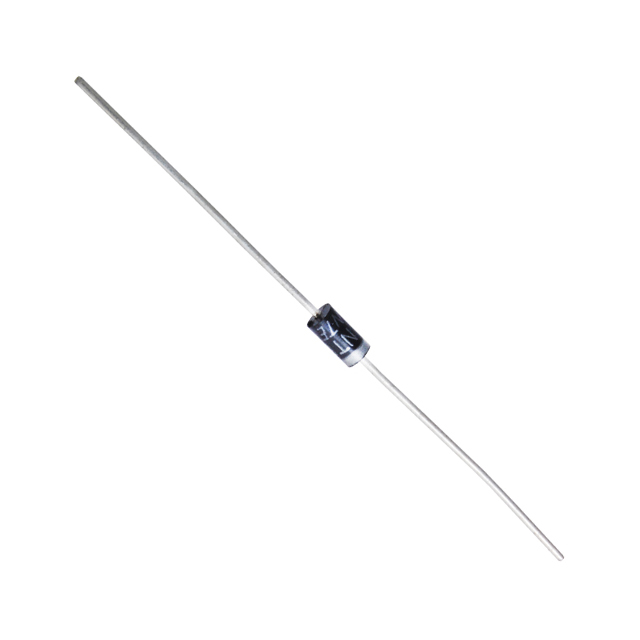

What is 1N4007

The 1N4007 is a venerable workhorse in the realm of electronic components. As a silicon rectifier diode, it plays a fundamental role in converting alternating current (AC) into direct current (DC) in a wide range of electronic devices and power supplies. With its robust voltage and current-handling capabilities, the 1N4007 is a staple choice for engineers and hobbyists alike when dealing with high-power rectification tasks. In this exploration of the 1N4007 diode, we will uncover its essential characteristics, applications, and the pivotal role it continues to play in today’s electronic landscape.

Features of 1N4007

Voltage Rating: 1000 volts peak reverse voltage (PIV).
Average Forward Current: Typically 1 ampere (A).
Peak Forward Inrush Current: Approximately 30 to 50 amps for a short duration.
Forward Voltage Drop: Typically between 0.7 and 1.1 volts.
Reverse Recovery Time: Relatively slow, usually in the microsecond class.
Package: Typically supplied in an axial leaded plug-in package.
Operating Temperature Range: Typical operating temperature range is -65°C to +175°C.

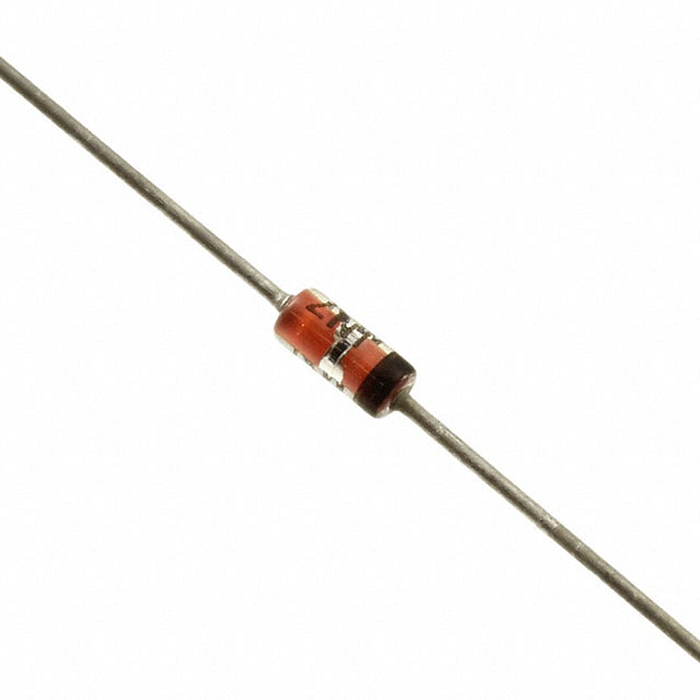

What is 1N4148

The 1N4148 diode is a miniature electronic component that packs a significant punch in the world of semiconductor devices. As a fast-switching silicon diode with a relatively low voltage rating, it occupies a critical niche in modern electronics. In this introduction to the 1N4148, we’ll delve into its unique features, versatile applications, and why it remains a go-to choice for engineers and enthusiasts seeking precision and speed in their electronic circuits.

Features of 1N4148

Voltage Rating: Peak Inverted Voltage (PIV) is typically 100 volts.
Average Forward Current: Typically 200 milliamperes (mA).
Forward Voltage Drop: Typically between 0.6 and 0.7 volts.
Fast Switching: Very fast switching characteristics for high frequency applications.
Packaging: Available in a variety of packages including axial leaded plug-in packages and surface mount packages.
Operating Temperature Range: Typical operating temperature range is -65°C to +175°C.

Differences between 1N4007 vs 1N4148 2023

Here are the key differences between the 1N4007 and 1N4148 diodes:

Type:

1N4007: Silicon rectifier diode.
1N4148: Silicon switching diode.

Voltage Rating:

1N4007: PIV (Peak Inverse Voltage) of 1000 volts. Designed for higher-voltage applications.
1N4148: PIV of 100 volts. Suitable for lower-voltage applications.

Current Rating:

1N4007: Typically has a higher average forward current rating, around 1 ampere (A).
1N4148: Typically has a lower average forward current rating, around 200 milliamperes (mA).

Reverse Recovery Time:

1N4007: Relatively slow reverse recovery time, suitable for rectification but not for high-frequency switching.
1N4148: Very fast reverse recovery time, ideal for high-frequency switching applications.

Forward Voltage Drop (VF):

1N4007: Typically has a higher forward voltage drop, around 0.7 to 1.1 volts.
1N4148: Typically has a lower forward voltage drop, around 0.6 to 0.7 volts.

Applications:

1N4007: Commonly used for rectification in power supplies with higher voltage and current requirements.
1N4148: Used in signal processing, high-frequency switching, and low-voltage applications where fast switching is essential.

How to Choose between 1N4007 vs 1N4148

Choosing between the 1N4007 and 1N4148 diodes depends on your specific circuit requirements and the application you are working on. Here are some guidelines to help you make the right choice:

1. Voltage Requirements:

If your circuit deals with higher voltage levels (typically above 100V), the 1N4007 with its 1000V PIV rating is the suitable choice.
For lower voltage applications (usually below 100V), the 1N4148 with its 100V PIV rating is more appropriate.

2. Current Handling:

If your circuit involves relatively high current levels (above 200mA), the 1N4007, which typically handles up to 1A, is a better option.
For low-current applications (below 200mA), the 1N4148 with its 200mA rating should suffice.

3. Switching Speed:

If your application requires fast switching, such as in high-frequency signal processing or switching applications, the 1N4148 with its very fast switching characteristics is the preferred choice.
If switching speed is not critical, as in power supply rectification, the 1N4007 can be used.

4. Forward Voltage Drop:

If you need to minimize voltage losses across the diode (low forward voltage drop), the 1N4148 typically has a lower VF than the 1N4007, making it more efficient for low-voltage applications.

5. Reverse Recovery Time:

Consider the reverse recovery time requirement. If your application requires minimal reverse recovery time (fast turn-off), the 1N4148 is designed for this purpose.
If reverse recovery time is not critical, the 1N4007 is sufficient for standard rectification tasks.
